    Single Stage Oxygen Gas Regulator With Flowmeters , Bull Nose Flow Regulator Valve

    Ask Lasest Price
    Brand Name : AFK
    Model Number : R11
    Supply Ability : 3000 Piece/Pieces per Day
    Price : Negotiable
    Certification : CE
    • Product Details
    • Company Profile

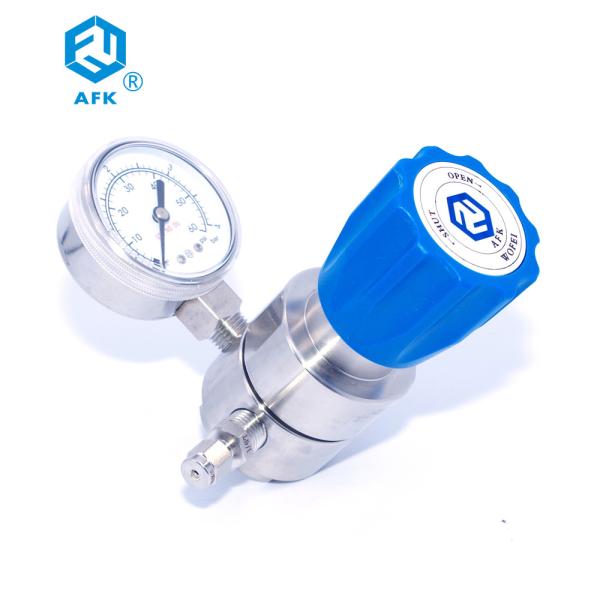

    Single Stage Oxygen Gas Regulator With Flowmeters , Bull Nose Flow Regulator Valve

    Description of Single Stage Oxygen Gas Regulator

    R11 Series stainless steel pressure regulator is Single-stage diaphragm vacuum structure Stainless diaphragm output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive gas etc.

    Design Features OF of Single Stage Oxygen Gas Regulator

    Single-stage decompression structure
    Hard-seal between body and Diaphragm
    Body Thread:1/4” NPT(F)
    Easy to clean inside
    Filter inside
    Panel mountable or wall mountable


    Typical Applications of Single Stage Oxygen Gas Regulator

    Laboratory
    Gas Laser
    Oil and chemical industry
    Testing instrumentation
    Oxy-fuel welding and cutting
    Water pressure reduction
    Air compressor
    Propane/LP Gas


    Specifications of Single Stage Oxygen Gas Regulator

    Max inlet pressure : 500, 3000psig
    Outlet pressure: 0-25,0-50,0-100,0-250, 0-500psig
    Proof pressure : 1.5 times of maximum rated pressure
    Working temperature: -10 ℉+ 165℉(-23℃~ +74 ℃)
    Leakage rate :2*10-8 atm.cc/sec
    Cv = 0.08

    Material of Single Stage Oxygen Gas Regulator

    Body: 316L, Brass
    Roof :316L ,Brass
    Diaphragm: 316L
    Filter mesh : 316L (10um )
    Valve seat: PCTFE,PTFE,Vespel
    Spring : 316L
    Valve disc regulation pole: 316L

    Order Information of Single Stage Oxygen Gas Regulator

    Single Stage Oxygen Gas Regulator With Flowmeters , Bull Nose Flow Regulator Valve

    ORDERING INFORMATION of Single Stage Oxygen Gas Regulator

    R11LBDFG0000P
    Item

    Body

    Materia

    Body Hole

    Inlet

    pressure

    Outlet

    pressure

    Pressure gaugeInlet sizeOutlet sizemark
    R11L:316AD:3000 psiF:0-500 psiG:MPa gauge00:1/4 " NPT (F)00: 1/4 " NPT(F)P:Panel mounting
    B:BrassBE:2200 psiG:0-250 psi01:1/4 " NPT (M)01: 1/4 " NPT(M)N:Needle valve
    DF:500 psil:0-100 psiP:Psig/bar gauge23: CGA33010:1/8 " ODN:Needle valve
    GK:0-50 psi24: CGA35011:1/4 " ODD:Diaphragm valve
    JL:0-25 psiW:No gauge28: CGA66012:3/8 " OD
    M28: CGA66015:6mm OD
    30: CGA59016:8mm OD
    52: G5/8 "-RH(F)
    63: W21.8-14H(F)
    64: W21.8-14LH(F)

    Pls inform us orde code such as R11-L-D-D-G-P-00-00.


    Or else, pls inform us following information:
    1. Media? co2, o2, He, H2, or others?
    2. Inlet and outlet pressure?
    3. Inlet connection and outlet connection? such as inlet connection:CGA320, outlet connection:1/4NPT M.
    4.Flow rate?
    5.Material? pls kindly specify. Nickel plated brass and ss316L are avaiable.


    Application

    Single Stage Oxygen Gas Regulator With Flowmeters , Bull Nose Flow Regulator ValveSingle Stage Oxygen Gas Regulator With Flowmeters , Bull Nose Flow Regulator ValveSingle Stage Oxygen Gas Regulator With Flowmeters , Bull Nose Flow Regulator Valve


    RFQ


    Q: Are you trading company or manufacturer?

    A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.


    Q. What about the lead time?

    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


    Q. What is your terms of packing?

    A: Export standard.


    Q. What is your terms of payment?

    A: T/T ,PayPal, Western Union.


    Q. What is your terms of delivery?

    A: EXW.
