    R11 Hydrogen Natural Gas Regulator , C2h2 Propane Panel Mounting Pressure Reducing Valve

    Ask Lasest Price
    Brand Name : AFK
    Model Number : R11
    Supply Ability : 30000 Set/Sets per Week
    Price : Negotiable
    Certification : CE
    MOQ : 1
    • Product Details
    • Company Profile

    R11 Hydrogen Natural Gas Regulator , C2h2 Propane Panel Mounting Pressure Reducing Valve

    R11 hydrogen c2h2 propane panel mounting high pressure gas regulator


    Product Description


    Technical Diameter:
    Maximum Inlet Pressure500,3000psig
    Outlet Pressure Ranges0~25, 0~50, 0~50,0~250,0~500psig
    Safety test pressure1.5 times maximum inlet pressure
    Operating Temperature-40°F to 165°F / -40°c to 74°c
    Leakage Rate AgainstAtmosphere2*10-8atm cc/sec he
    Cv value0.08
    Materials:
    Body316L,Brass
    Bonnet316L. Brass
    Diafragm316L
    strainer316L(10mm)
    SeatPCTFE,PTEE,Vespel
    Spring316L
    Plunger valve core316L
    Design Features:
    Single-stage pressure reducer
    Maternal and diaphragm use hard seal form
    Body NPT:1/4''NPT(F)
    The internal structure easy to purge
    Can set filters
    Can use a panel or wall mounting
    Typical Applications

    Labotary
    Gas Chromatography
    Gas laser
    Gas bus-bar
    petro-chemical industry
    Test equipment



    Flow rate

    R11 Hydrogen Natural Gas Regulator , C2h2 Propane Panel Mounting Pressure Reducing Valve


    Diagram

    R11 Hydrogen Natural Gas Regulator , C2h2 Propane Panel Mounting Pressure Reducing Valve


    Ordering information

    R11LBDFG0000P
    Item

    Body

    Materia

    Body Hole

    Inlet

    pressure

    Outlet

    pressure

    Pressure gaugeInlet sizeOutlet sizemark
    R11L:316AD:3000 psiF:0-500 psiG:MPa gauge00:1/4 " NPT (F)00: 1/4 " NPT(F)P:Panel mounting
    B:BrassBE:2200 psiG:0-250 psi01:1/4 " NPT (M)01: 1/4 " NPT(M)N:Needle valve
    DF:500 psil:0-100 psiP:Psig/bar gauge23: CGA33010:1/8 " ODN:Needle valve
    GK:0-50 psi24: CGA35011:1/4 " ODD:Diaphragm valve
    JL:0-25 psiW:No gauge28: CGA66012:3/8 " OD
    M28: CGA66015:6mm OD
    30: CGA59016:8mm OD
    52: G5/8 "-RH(F)
    63: W21.8-14H(F)
    64: W21.8-14LH(F)

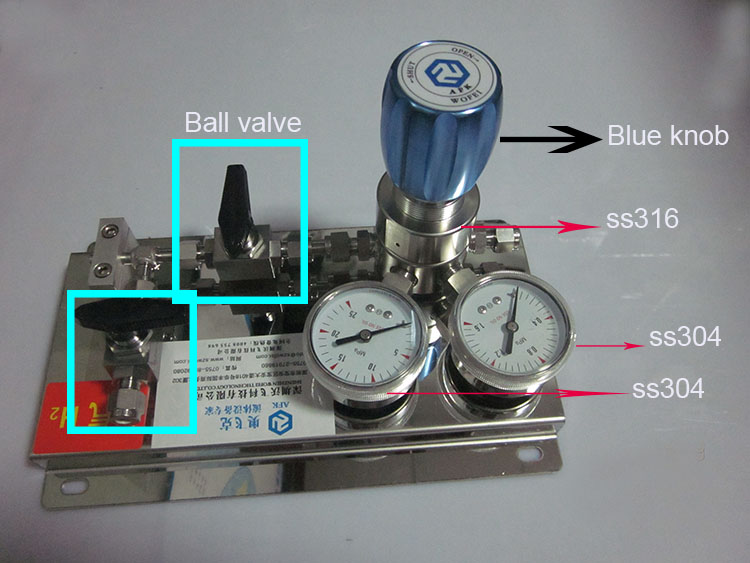

    Detailed Images

    R11 Hydrogen Natural Gas Regulator , C2h2 Propane Panel Mounting Pressure Reducing Valve

    APPLICATIONS

    FAQ


    Q1. What about the lead time?
    A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

    Q2. Do you have any MOQ limit ?
    A: Low MOQ 1 pic.


    Q3. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.


    Q4. How to proceed an order ?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
