    Adjustable Irrigation Valve Manifold , Low Pressure Sprinkler Irrigation Valve

    Ask Lasest Price
    Brand Name : AFK
    Model Number : 200P
    Supply Ability : 300000 Piece/Pieces per Week
    Price : Negotiable
    Certification : None
    • Product Details
    • Company Profile

    Adjustable Irrigation Valve Manifold , Low Pressure Sprinkler Irrigation Valve

    12volt adjustable flow 24v solenoid valve water controller


    Product Description

    *Model: 200P

    *Pipe Size: 2 inch

    *Orifice Size: 50mm

    *Thread: BSP

    *Medium: Water

    *Operating: Pilot

    *Connection: Flange

    *Function type: Normally Closed

    *Working Pressure: 0.1-1.0Mpa

    *Body material: Nylon

    *Voltage: DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V,DC9V(optional)


    TECHNICAL PARAMETERS
    materialnylon plastic body, NBR seal
    Fluidwater
    Fluid temperature≤43°C
    Environment temperature≤52°C
    Service voltage6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
    Pulse width20-500mSec (only for latching type)
    Coil resistance6 Ω
    Capacitance4700uF
    Coil inductance12mH
    ConnectionG(BSP) female thread is regular, special order for NPT(3/4" and 1")

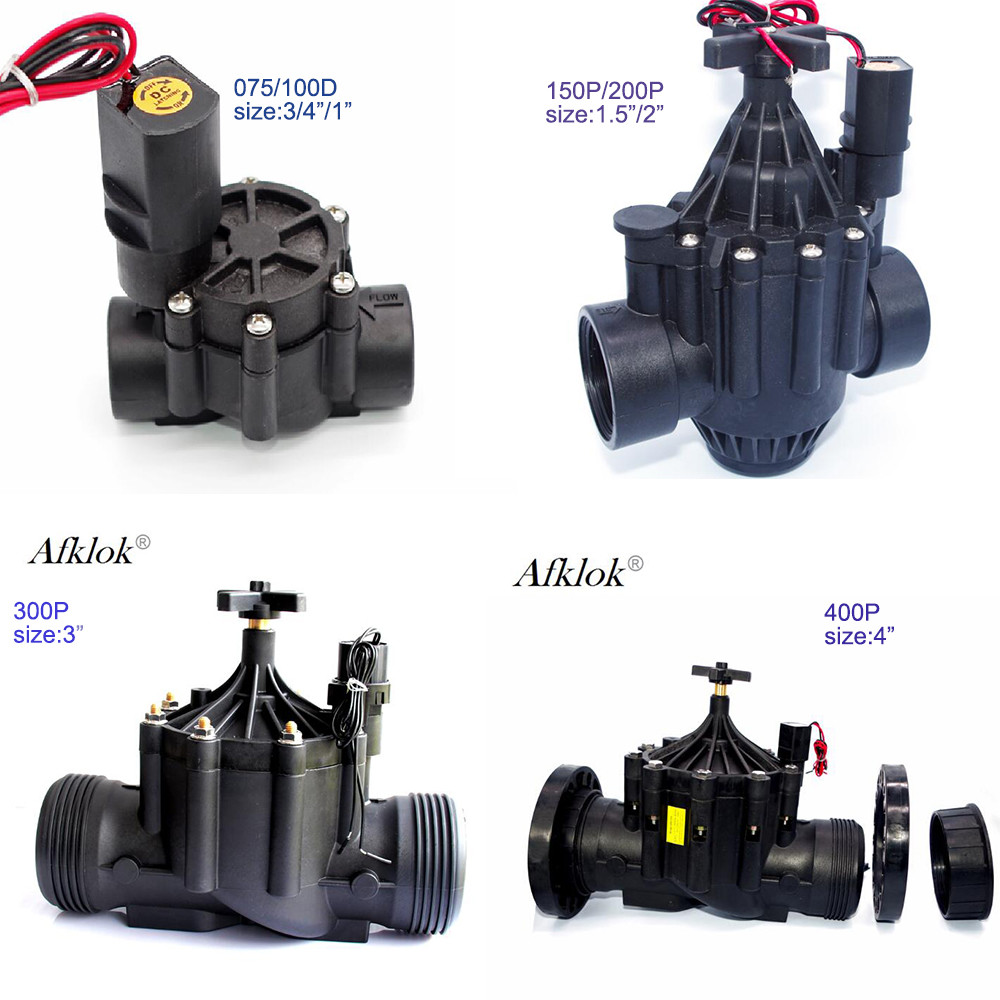

    Size

    075D: 3/4", 20mm (BSP or NPT female)

    100D:1", 25mm (BSP or NPT female )

    100P:1", 25mm (BSP female)

    150P:1-1/2"(1.5"), 40mm (BSP female)

    200P:2", 50mm (BSP female)

    300P:3", 80mm (BSP female, male, flange)

    400P:4", 100mm (BSP female, male, flange)

    Working pressure

    3/4" and 1": 1-10bar

    1.5"and 2": 1-10.4bar

    3"and 4": 0.7-14bar

    Flow rate

    3/4": 5 /h

    1": 9 m³/h

    1.5"-2": 0.45-34.05 m³/h

    3"-4": 1.1-70 m³/h

    Operation modevalve element lock position,valve open, release position, valve close.

    Irrigation System


    Adjustable Irrigation Valve Manifold , Low Pressure Sprinkler Irrigation Valve

    Adjustable Irrigation Valve Manifold , Low Pressure Sprinkler Irrigation Valve
