A panel control regulator valve with 4 valves is a device that is
used to regulate the flow and pressure of fluids or gases in
various applications. The device is typically mounted onto a
control panel or instrument panel, and features four individual
valves that can be used to control the flow of fluid or gas through
the system. Here are some key features and benefits of a panel
control regulator valve with 4 valves:
- Precise Control: The four individual valves on the panel control regulator valve
allow for precise control of fluid or gas flow and pressure, making
it ideal for applications that require accurate and stable control.
- Compact Design: The compact design of the panel control regulator valve with 4
valves allows for easy installation onto a control panel or
instrument panel, saving space and reducing the overall footprint
of the system.
- Easy to Operate: The panel control regulator valve with 4 valves is typically
designed to be easy to operate, with intuitive controls that allow
for quick adjustments to flow and pressure.
- Durable Construction: The device is typically constructed from durable materials such as
stainless steel or brass, making it resistant to corrosion and
ensuring reliable operation in harsh environments.
- Versatile Applications: The panel control regulator valve with 4 valves can be used in a
wide range of applications, including chemical processing, oil and
gas production, food and beverage processing, and many others.
- Cost-Effective: The panel control regulator valve with 4 valves is often a
cost-effective solution for applicationsthat require precise
control of fluid or gas flow and pressure, as it eliminates the
need for multiple individual valves and regulators.
- Easy Maintenance: The panel control regulator valve with 4 valves is typically
designed for easy maintenance, with accessible components that can
be easily replaced if necessary.
- Customizable: The panel control regulator valve with 4 valves can be customized
to meet the specific requirements of a particular application, with
options for different valve sizes, materials, and connection types.
Overall, a panel control regulator valve with 4 valves is a
versatile and reliable device that provides precise control of
fluid or gas flow and pressure

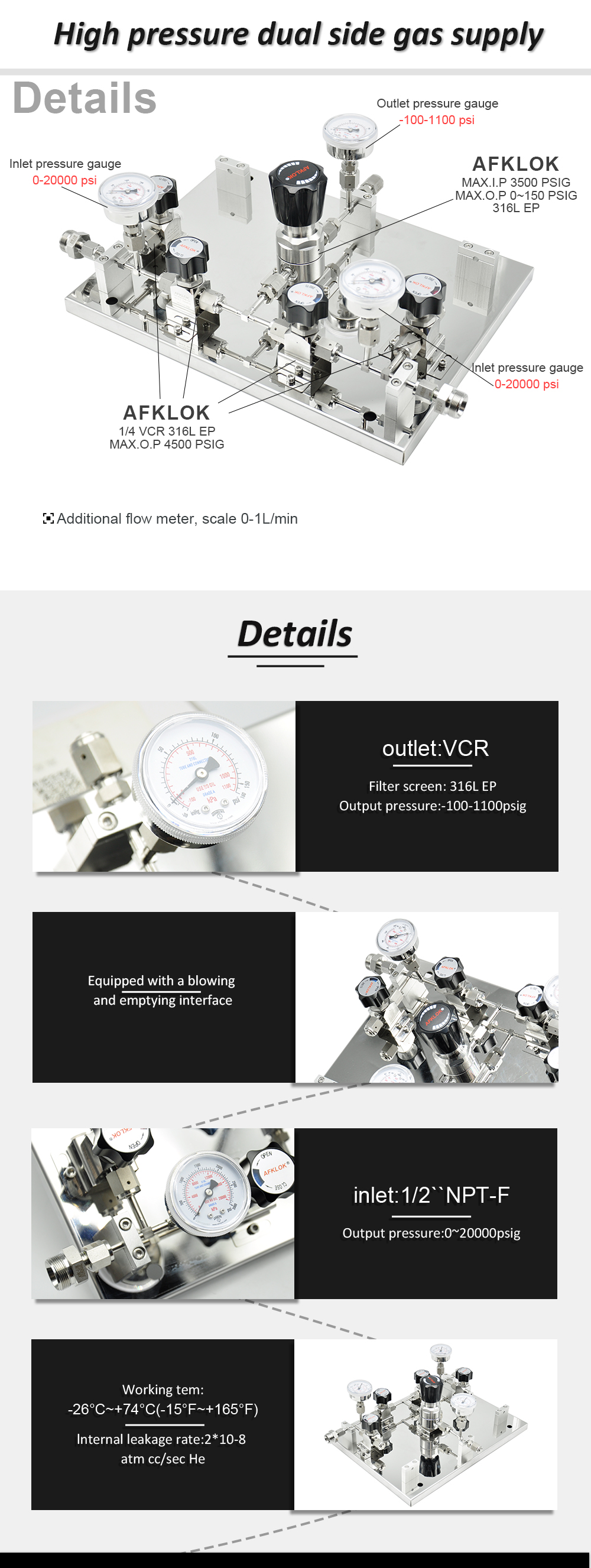

Structural Features of With 4 Valve Panel Control Regulator
| 1 | Special gas series pressure reducers |
| 2 | with safety valve |
| 3 | Pressure reducer and pipework tested for resistance and leakage |
| 4 | 2" stainless steel pressure gauge with clear reading |
| 5 | All diaphragm valve knobs with "on/off" indicator window |
Technical Specifications of Panel Control Pressure Regulator
| 1 | Maximum inlet pressure | 3000,2000psi |
| 2 | Maximum outlet pressure | 25,50,100,150,250psi |
| 3 | Operating temperature | -40℃~230℃ |
| 4 | Pressure reducer leakage rate | 2x10-8 atm.cc/sec He |
| 5 | Cv | 0.14 |
Materials of Panel Control Regulating Valves
| 1 | Pressure reducer parent | stainless steel |
| 2 | Pressure reducer valve seats | PU,PTFE,PCTFE |
| 3 | Panel air inlet connection | 1/4" AFK,1/4" FSR,1/2" FSR |
| 4 | Panel air outlet connection | 1/4" AFK,1/4" FSR |
| 5 | Diaphragm valve master | stainless steel |
4 valve panel control regulating valve scenarios and areas of use
- Chemical Processing
- Oil and Gas Production
- Food and Beverage Processing
- Pharmaceutical Manufacturing
- Water Treatment
- HVAC Systems
- Industrial Automation
- Laboratory and Research
- Aerospace and Defense
- Automotive Manufacturing

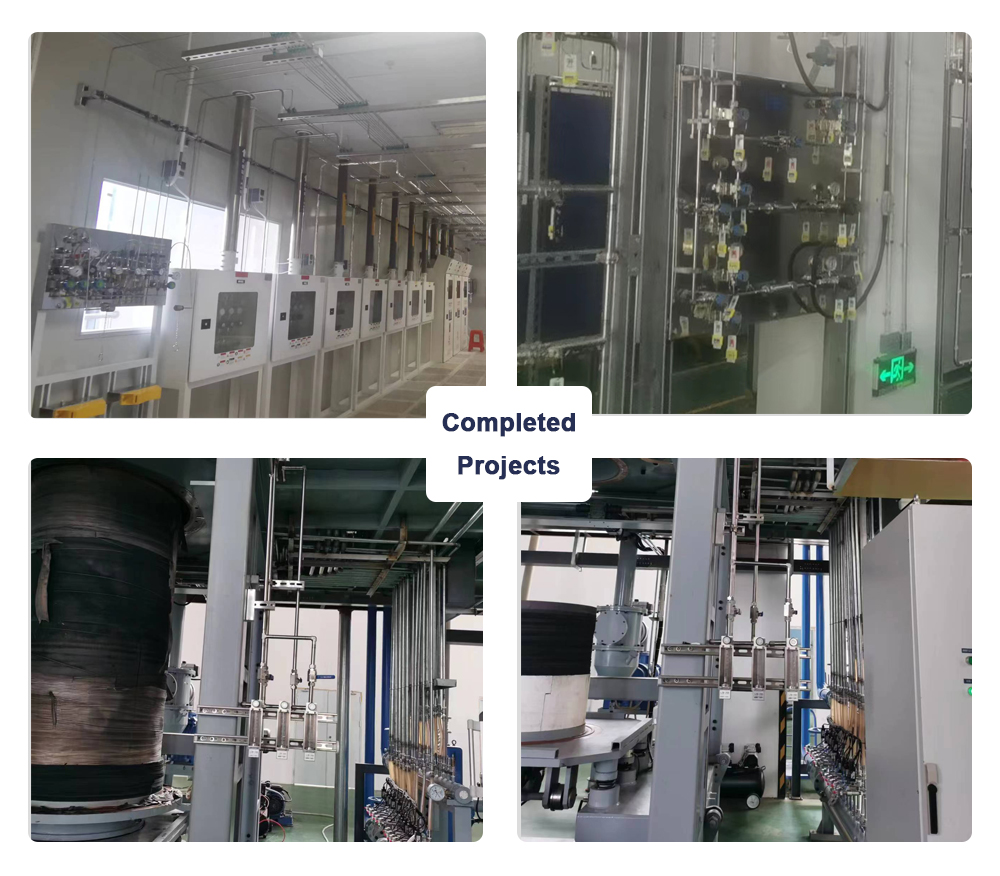

Completed projects
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our
company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20
days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning
qualified.If there is any fault for our products within the free
warranty period, we will repair it and change the fault assembly
for free.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website
directly for our catalogue and price list;
Q: Can I negotiate the prices?
A: Yes, we may consider discounts for multiple container load of
mixed goods.
Q: How much will the shipping charges be?
A: It depends on the size of your shipment and the method of
shipping.
We will offer the charge to you as you requested.
