    PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

    Ask Lasest Price
    Brand Name : AFK
    Model Number : R12
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000PC
    Delivery Time : 1WEEK
    • Product Details
    • Company Profile

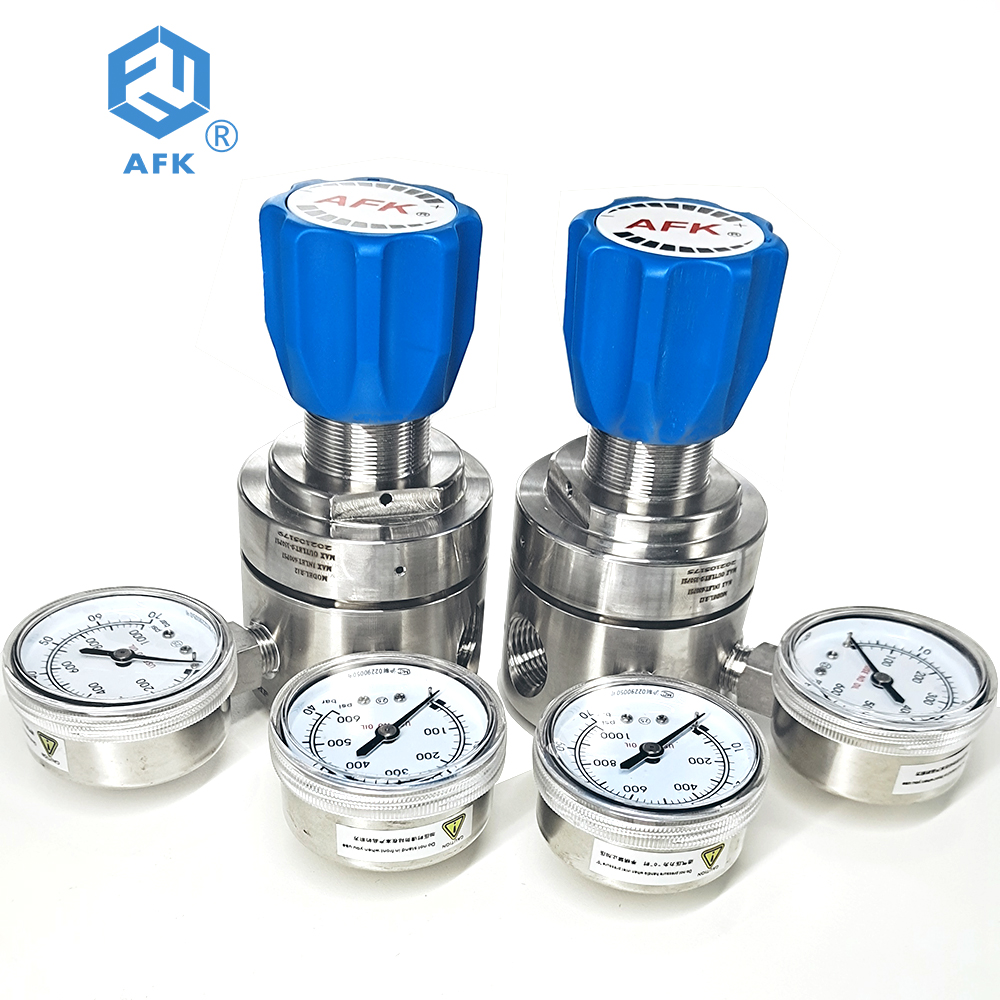

    PCTFE PTFE Stainless Steel Pressure Regulator 1000PSI 600Psi Double Gauges

    Prudcut Description

    R12 Series stainless steel pressure reducers , single-stage diaphragm construction , stainless steel diaphragm pressure transmission , stable output pressure , applied to medium flow gas system.

    Inlet pressure gauge

    Outlet pressure gauge

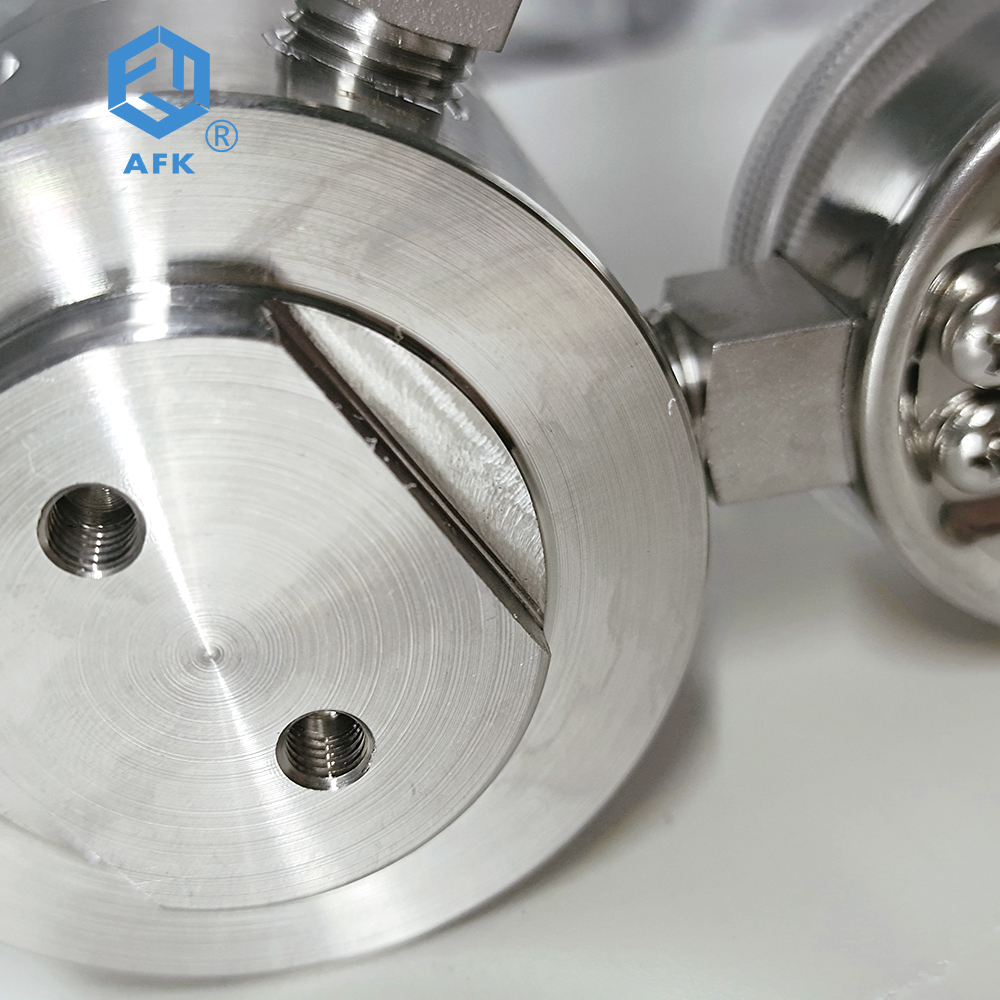

    Bottom details

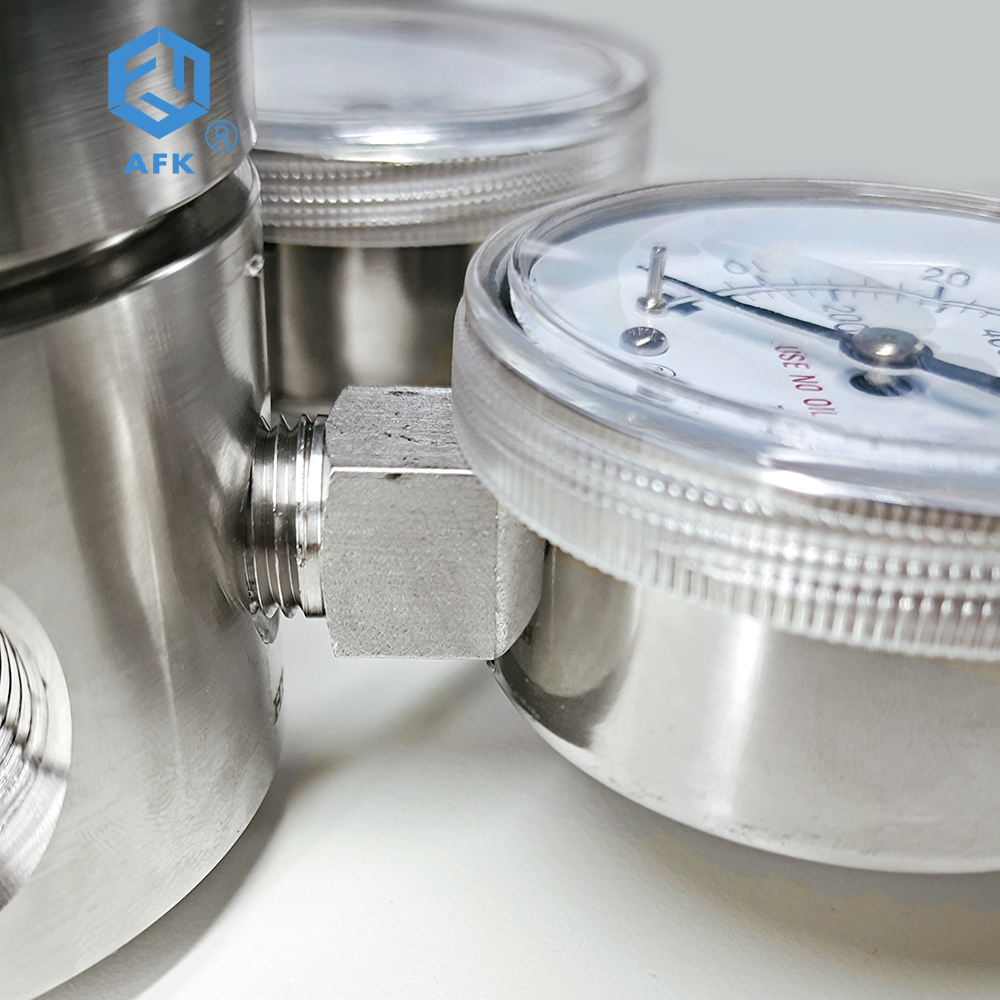

    Side details



    Design FeaturesTypical Applications

    single-stage pressure-reducing structure

    metal-to-metal diaphragm seal

    body thread:1/2 " NPT(F)

    pressure gauge , safety valce interdace 1/4" NPT(F)

    filter element installed internally

    panel mounting and wall mounting available

    laboratory

    gas purge system

    corrosive gas , special gas

    gas bus-bar

    testing equipment

    SpeciffcationMaterial

    maximum inlet pressure:500 , 3000psi

    output pressure:0~25 , 0~50 , 0~100 , 0~125 , 0~250psig

    safety testing pressure:1.5times of maximum inlet pressure

    working tem:-40℉~+446℉(-40℃~+230℃)

    internal leakage rate:2*10-8 atm cc/sec He

    Cv:1.1

    bady:316L , brass

    bonnet:316L , brass

    diaphragm:316L

    strainer:316L (10um)

    seat:PCTFE , PTFE , Vespel

    spring:316L

    valve stem:316L



    Ordering Information

    R12LBBDG0002P
    ItemBody MaterialBody HoleInlet Pressure

    Outlet

    Pressure

    Pressure Guage

    Inlet

    size

    Outlet

    size

    Mark
    R12L:316AD:3000 psiH:0-125psigG:Mpa guage02:3/8″NPT(F)02:3/8″NPT(F)P:Panel mounting
    B:BrassBF:500 psiI:0-100psigP:Psig/Bar Guage03:3/8″NPT(M)03:3/8″NPT(M)R:With relief valve
    DK:0-50pisgW:No guage04:1/2″NPT(F)04:1/2″NPT(F)
    GL:0-25psig04:1/2″NPT(M)04:1/2″NPT(M)
    J12:3/8″ OD12:3/8″ OD
    M13:1/2″ OD13:1/2″ OD
    Other type is availableOther type is available
