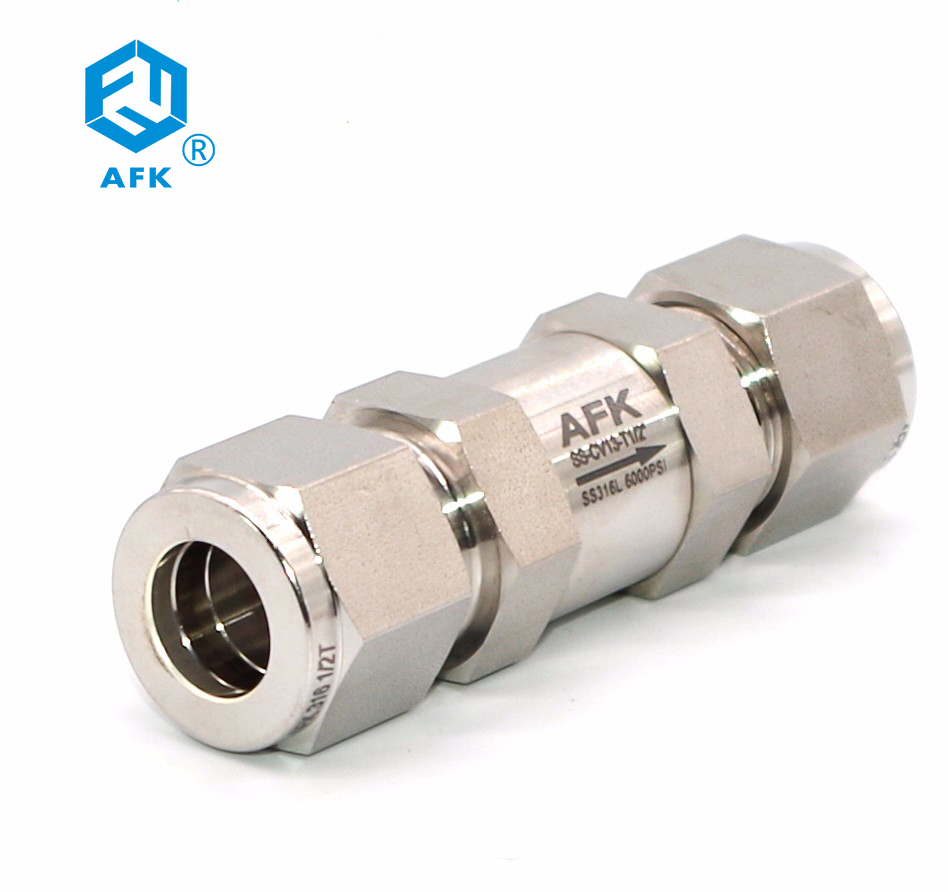

AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas

    Buy cheap AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas from wholesalers

    Buy cheap AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas from wholesalers
    • Buy cheap AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas from wholesalers
    • Buy cheap AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas from wholesalers

    AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas

    Ask Lasest Price
    Brand Name : AFK
    Model Number : CV
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200PC
    Delivery Time : 15Day
    • Product Details
    • Company Profile

    AKF Air Compressor Check Valve Stainless Steel 6000psi BSPT NPT For Gas

    Characteristic of Stainless Steel Check Valve 6000psi

    1

    End connections avail be with AFK tube end.BSPT or NPT female & male thread for option

    2Variable fixed cracking pressre springs,range from 1 to 25psig ±5%
    3O-ring ensures leak proof shut off
    4Back stopped poppet minimizes spring stress

    Features of Air Compressor Check Valve

    1Inline check valve stops reversed flow in orde to protect instrumentation
    2Body material in stainless steel SS316/316L cold drawn bar
    3Max.allowed working pressure 3000psi (206bar)
    4With viton O-ring
    5100% factory tested

    Material of Construction

    itempart descriptionQtymaterial
    1inlet body1SS316/316L
    2outlet body1SS316/316L
    3seal ring1Fluororubber
    4poppet1SS316/316L
    5spring1SS304

    nominal cracking pressurenominal cracking pressure
    1401
    107-15
    2520-30

    Ordering Information

    C-CV-S6-04A-1#
    ClassificationProuduct NameMaterialSize(Fractional)Size(Metric)Connection TypeCracking Pressure
    Valvecheck valveS6:SS31602:1/8"6:6mmA:AFK tube end1#:1PSIG
    S6L:SS316L04:1/4"8:8mmMR:male BSPT thread10#:10PSIG
    06:3/8"10:10mmFR:female BSPT thread25#:25PSIG
    08:1/2"12:12mmMN:male NPT thread
    12:3/4"FN:female NPT thread
    16:1"
