    Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure

    Ask Lasest Price
    Brand Name : AFK
    Model Number : R12
    Certification : CE RoSH
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Delivery Time : 10000 Set/Sets per Week
    Price : Negotiable
    • Product Details
    • Company Profile

    Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure

    Stailess Steel Panel Mounted High Pressure Nitrogen Gas Regulator


    Specification

    R12 series stainless steel pressure reducers, single-stage diaphragm construction, stainless steel diaphragm pressure transmission,


    stable output pressure, applied to medium flow gas system.


    Design Features

    • Single-stage pressure-reducing structure
    • Metal-to-metal diaphragm seal
    • Body thread: in and out of air interface ,1/2'' NPT(F)
    • pressure gauge, safety valve connection: 1/4'' NPT(F)
    • Filter net installed internally
    • Panel and wall mounting available

    Typical Applications

    • Laboratory
    • Gas Purge System
    • Corrosive Gas and Special gas
    • Gas Bus-bar
    • Testing Equipment

    Product Show

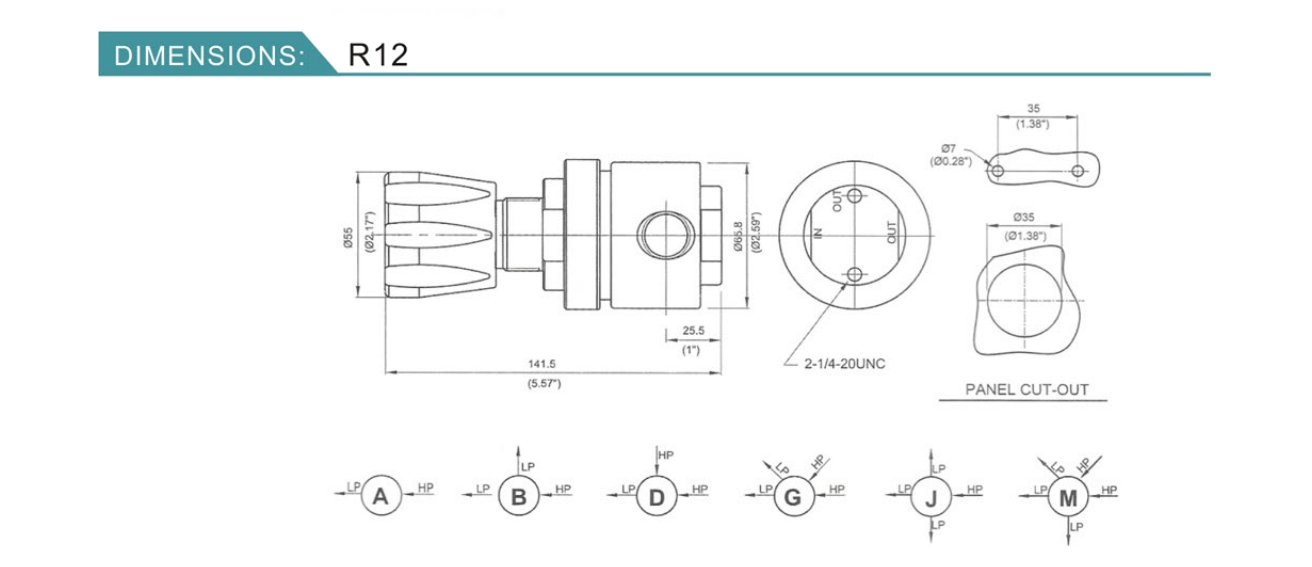

    Detail Image

    Ordering information

    R12LBDFG0200P
    Item

    Body

    Materia

    Body

    Hole

    Inlet

    pressure

    Outlet

    pressure

    Pressure

    gauge

    Inlet

    size

    Outlet

    size

    mark
    R12L:316AD:3000psiG:0~250psigG:MPa gauge02:3/8”NPT(F)02:3/8”NPT(F)P:Panel mointing
    B:BrassBF:500psiH::0~125psig03:3/8”NPT(M)03:3/8”NPT(M)R:With relief valve
    DI::0~100psigP:Psig/bar gauge04:1/2”NPT(F)04:1/2”NPT(F)
    GK::0~50psig05:1/2”NPT(M)05:1/2”NPT(M)
    JL::0~25psigW:No gauge12:3/8”OD12:3/8”OD
    M13:1/2”OD13:1/2”OD
    Other type is availableOther type is available

    Our Company


    Delivery



    FAQ


    Q: Are you trading company or manufacturer ?
    A: We are factory.

    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?
    A: No, we not offer the sample for free charge and also not pay the cost of freight.

    Q: What is your payment ?
    A: T/T , PayPal , Western Union
