    Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

    Ask Lasest Price
    Brand Name : AFK
    Model Number : RW74
    Certification : CE RoSH
    Payment Terms : L/C, D/A, D/P, Western Union, T/T, MoneyGram
    Supply Ability : 10000 Set/Sets per Week
    Delivery Time : 2 weeks
    Price : Negotiable
    • Product Details
    • Company Profile

    Single Stage Stainless Steel Pressure Regulator , High Pressure Air Regulator Valve

    Product Description:


    Main Features

    Name: RW74 Back pressure regulator
    Brand: AFK
    Original: China
    RW74 Series Back pressure Regulator is a diaphragm-sensed single-stage "Industrial-style" regulator,

    designed for gas or liquid application where ultra high flow is desired.

    Available in nickel-plated brass and stainless steel.



    Material

    *Body: Brass, 316L

    *Seat: Neoprene

    *Diaphragm: Neoprene

    Typical applications

    *Chromatography

    *Laboratories

    *Petrochemical industry

    *Power plant equipments

    Features

    *Single stage Configuration

    *Pressure gauge/Safety valve port size: 1/4" NPT (F)

    *Inlet/outlet port size: 1" NPT (F)

    *2" Pressure gauge

    *Proof pressure: 1.5 times maximum inlet pressure

    *Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)

    *Leak Rate: 2 X 10-8 atm. cc/sec He

    *Maximum CV: 5.2


    eoDetailed Images



    Certifications

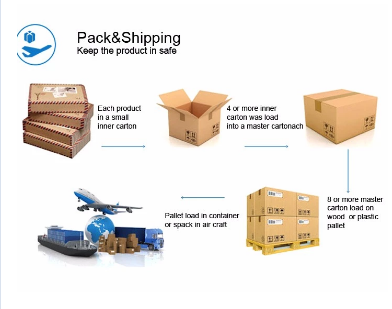

    Packing & Delivery


    FAQ


    Q: Are you trading company or manufacturer ?
    A: We are factory.

    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: Do you provide samples ? is it free or extra ?
    A: No, we not offer the sample for free charge and also not pay the cost of freight.

    Q: What is your payment ?
    A: T/T , PayPal , Western Union
