Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge

    Buy cheap Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge from wholesalers

    Buy cheap Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge from wholesalers
    • Buy cheap Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge from wholesalers
    • Buy cheap Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge from wholesalers
    • Buy cheap Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge from wholesalers

    Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge

    Ask Lasest Price
    Brand Name : AFK
    Model Number : R41
    Certification : CE ROSH
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3500 pieces per week
    Delivery Time : 5-8 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Pure Gas High Pressure Reducer Hydrogen Gas Regulator 3000/6000 Psi With Gauge

    Stailess Steel Pure Gas High Pressure Reducer Hydrogen Gas Regulator With Gauge


    R41 Serie stainless steel pressure reducers, piston pressure-reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on


    Material List

    1

    Body

    SS316L, brass, nickel plated brass ( Weigh :0.9kg)

    2

    Cover

    SS316L, brass, nickel plated brass

    3

    Diaphragm

    SS316L

    4

    Strainer

    SS316L(10um)

    5

    Valve Seat

    PCTFE,PTFE,Vespel

    6

    Spring

    SS316L

    7

    Plunger Valve Core

    SS316L


    Technical Data

    1

    Maximun Input Pressure

    3000 psig, 6000psig

    2

    Output Pressure Range

    0~250, 0~500, 0~1000, 0~1500, 0~3000 psig

    3

    Safety Testing Pressure

    1.5 times of maximum input pressure

    4

    Working Temperature

    -40°F~ +165°F (-40°C~ +74°C )

    5

    Leakage Rate

    2×10-8 atm cc/sec He

    6

    CV Value

    0.06


    Design Features

    Piston regulating structure

    Body thread: 1/4'' NPT(F)

    Easy to clean internal structure

    Filter element installed internally

    Panel mounting and wall mounting available

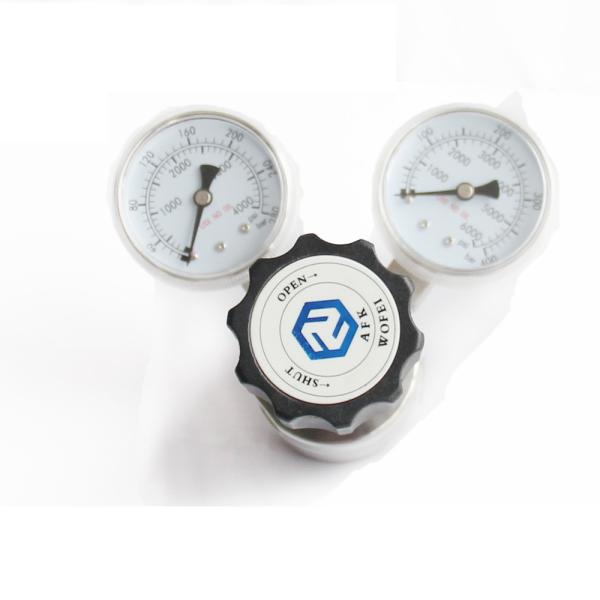

    Detail Image


    Ordering Information

    R41LBBDG0000P
    ItemBody MateriaBody HoleInlet PressureOutlet PressurePressure GaugeInlet SizeOutlet SizeOptions
    R41L:316AB:6000psigD:0~3000psigG:MPa gauge00:1/4″NPT(F)00:1/4″NPT(F)P:Panel mounting
    B:BrassBD:3000psigE:0~1500psigP:Psig/bar gauge00:1/4″NPT(M)00:1/4″NPT(M)
    DF:0~500psigW:No gauge10:1/8″OD10:1/8″OD
    GG:0~250psig11:1/4″OD11:1/4″OD
    J12:3/8″OD12:3/8″OD
    M15:6mm”OD15:6mm”OD
    16:8mm”OD16:8mm”OD
